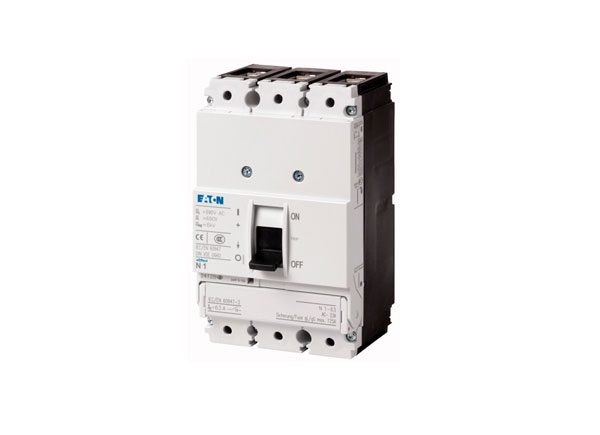

259140 PN1-63 Interruptor-seccionador 3P 63A EATON MOELLER

259140 PN1-63 Interruptor-seccionador 3P 63A EATON MOELLER

El precio original era: 199,99 €.El precio actual es: 132,11 €.

Número de parte: PN1-63
Código: 259140



Categorías: , ,

Descripción

Delivery program
Product range
 Switch-disconnectors
Protective function
 Disconnectors/main switches
Standard/Approval
 IEC
Installation type
 Fixed
Construction size
 PN1
Description
 Main switch characteristics including positive drive to IEC/EN 60204 and VDE 0113.
Isolating characteristics to IEC/EN 60947-3 and VDE 0660.
Busbar tag shroud to VDE 0160 Part 100.
Number of poles
 3 pole
Standard equipment
 Box terminal
Switch positions
 I, 0
Rated current = rated uninterrupted current
 In = Iu A 63
Short-circuit protection max. fuse gL-characteristic
 A gL 125

Technical data
General
Standards
 IEC/EN 60947
Protection against direct contact
 Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110
Climatic proofing
 Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature
Ambient temperature, storage
 °C – 40 – + 70
Operation
 °C -25 – +70
Mechanical shock resistance (10 ms half-sinusoidal shock) according to IEC 60068-2-27
 g 20 (half-sinusoidal shock 20 ms)
Safe isolation to EN 61140
Between auxiliary contacts and main contacts
 V AC 500
between the auxiliary contacts
 V AC 300
Mounting position
Mounting position
Vertical and 90° in all directions
With residual-current release XFI:
– NZM1, N1, NZM2, N2: vertical and 90° in all directions
with plug-in adapter elements
– NZM1, N1, NZM2, N2: vertical, 90° right/left
with withdrawable unit:
– NZM3, N3: vertical, 90 ° left
– NZM4, N4: vertical
with remote operator:
– NZM2, N(S)2, NZM3, N(S)3, NZM4, N(S)4: vertical and 90° in all directions
Direction of incoming supply
 as required
Degree of protection
Device
 In the area of the HMI devices: IP20 (basic protection type)
Enclosures
 With insulating surround: IP40
With door coupling rotary handle: IP66
Terminations
 Tunnel terminal: IP10
Phase isolator and band terminal: IP00
Switch-disconnectors
Rated surge voltage invariability
 Uimp
Main contacts
 V 6000
Auxiliary contacts
 V 6000
Rated operational voltage
 Ue V AC 690
Rated operating frequency
 f Hz 50/60
Rated current = rated uninterrupted current
 In = Iu A 63
Overvoltage category/pollution degree
 III/3
Rated insulation voltage
 Ui V 690
Use in unearthed supply systems
 V ≦ 690
